Description
Connect data from 4 sources (NMEA2000, NMEA0183, SeaTalk, AIS) with Miniplex 3USB-N2K. Four NMEA0183 ports, including one configured for the Seatalk network (depth, speed, wind, GPS and autopilot), two NMEA0183 output ports (radar and VHF with GPS and AIS), a Micro-C socket (for NMEA2000 connection) and a USB interface for connection to a laptop.

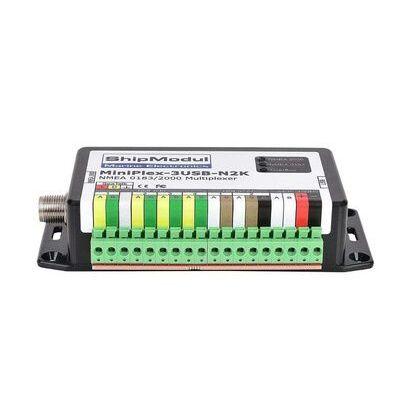

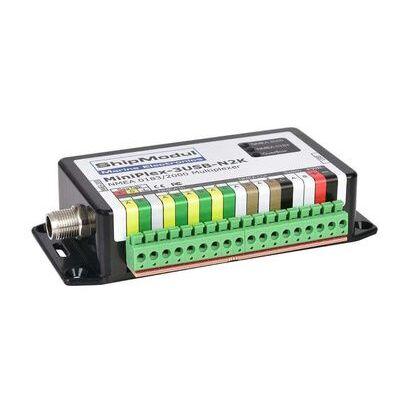

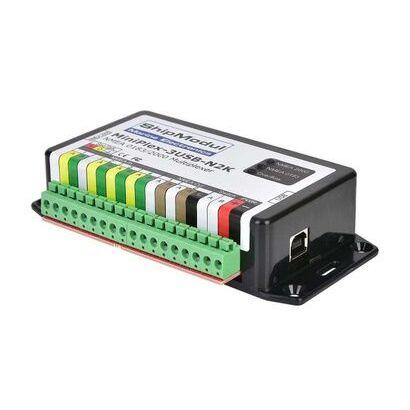

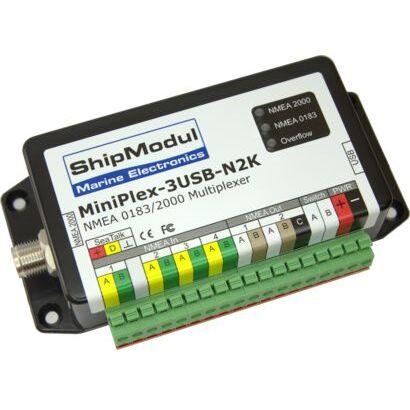

The MiniPlex-3USB - N2K is an NMEA multiplexer compatible USB, combining data from up to 4 navigation instruments into 2 NMEA outputs (transmitter ports), and a port USB for connection to a computer. The USB connection can co-exist, and data can be routed between the two interfaces. It also supports AIS andautres NMEA devices with high transmission speeds, up to 57600 baud.
Using a MiniPlex-3USB-N2K multiplexer has major advantages:
Instrument data are available via a USB connection.
UDP and TCP data are exchanged between devices.
Tailored integration into an existing Raymarine Seatalk® network.
Inputs are galvanically isolated.
Control of source, destination and transmission rate of NMEA phases.
Switching between navigation computer and navigation via GPS.
Switching between primary and secondary instruments in case of failure.
Direct connection to port USB, without problems.
Precisely fulfills Plug & Play function.
NMEA2000 connection (Micro-C socket).
