Description
With Miniplex 3WI, connect data from 3 sources (NMEA0183, SeaTalk, AIS) into a single NMEA0183 frame available wirelessly on your WiFi device.

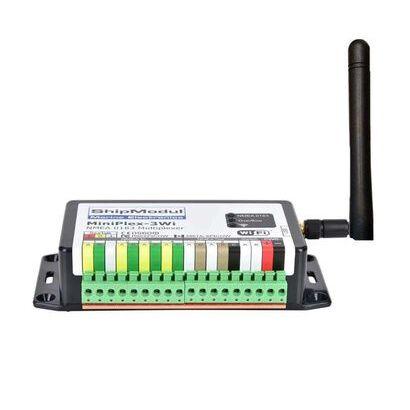

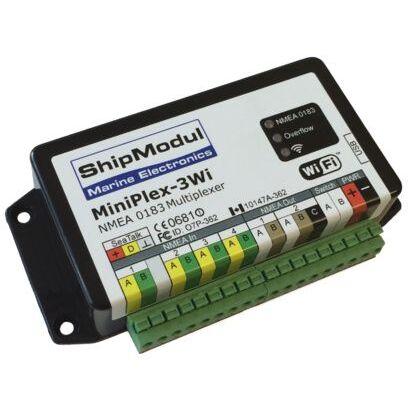

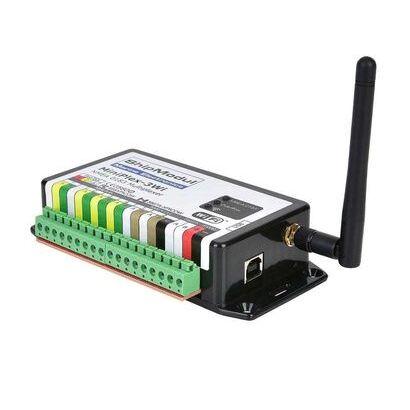

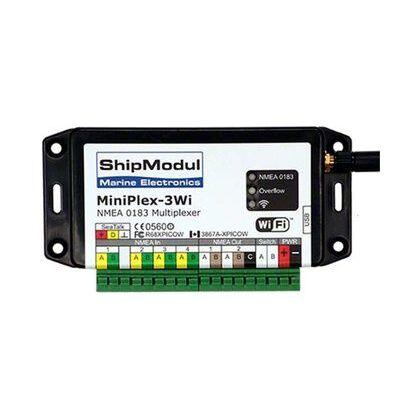

The MiniPlex-3Wi is a NMEA compatible WiFi multiplexer, combining data from up to 4 navigation instruments into 2 NMEA outputs (transmitter ports allowing data distribution to up to 7 instruments), a WiFi interface and a port USB for connection to a computer, or for firmware updates (and configuration of specific WiFi settings). Wi-Fi and USB connections can coexist and data can be routed between the two interfaces. It also supports AIS andautres NMEA devices with high transmission speeds, up to 57600 baud.
Using a MiniPlex-3Wi-N2K multiplexer has major advantages:
Instrument data is available via a WiFi connection.
The Miniplex is a point wireless access for any WiFi device.
The multiplexer connects up to 7 devices simultaneously over WiFi.
UDP and TCP data is exchanged between devices.
Simultaneous connection to a second computer via the port USB.
Suitable integration into an existing Raymarine Seatalk® network.
Inputs are galvanically isolated.
Controls source, destination and transmission rate of NMEA phases.
Switches between navigation computer and navigation via GPS.
Switches between primary and secondary instruments in the event of a failure.
Connects directly to a port USB, without problems.
Fulfills the Plug & Play
NMEA2000 connection (Micro-C plug)
