Description

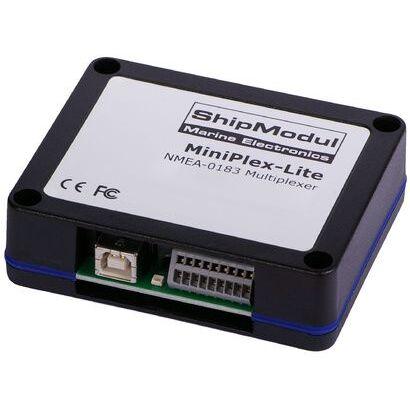

The world's simplest and most cost-effective NMEA 0183 multiplexer at port USB! Connect your navigation devices and AIS receiver to your computer with this 3-channel, USB-interface multiplexer,
zero configuration. One of the inputs automatically configures its baud rate to that of the AIS when the MiniPlex-Lite is connected.
Inputs: 3 x NMEA-183/RS-422, galvanically isolated NMEA input
Input 3 has automatic detection between 4800 bps and 38400 bps, to match the high data rate of AIS receivers.
Outputs: 1 x NMEA-183/RS-422 for repeater display and/or autopilot.
Consumption: 30 mA
Dimensions: 97 mm x 79 mm x 28 mm
Power supply: 5 Volts via USB
Computer interface: Port USB Bidirectional, the driver creates a virtual port COM with optional flow control.
NMEA speed input: 4800 bps (4800/9600/19200/38400 on input 3)
NMEA speed output
