Battery manager Compact BM-1

NASA

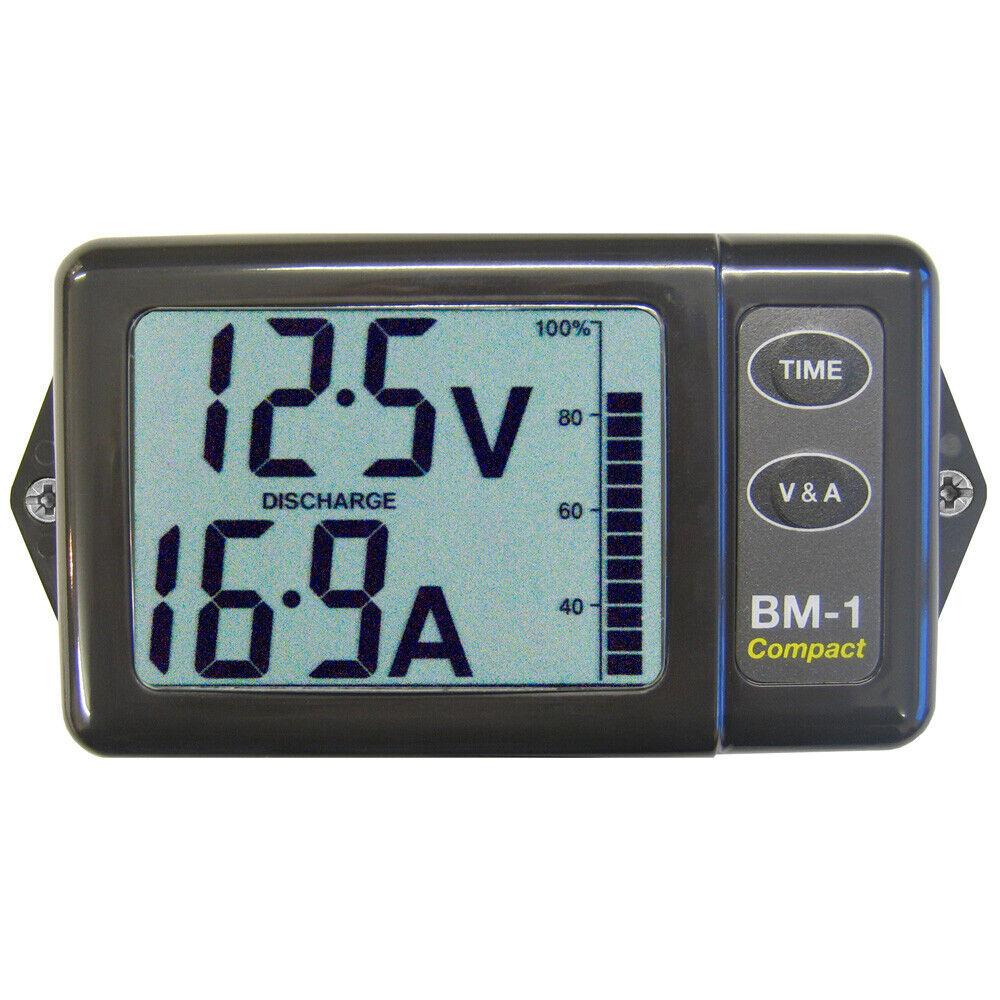

BM-1 COMPACT

The BM-1 COMPACT monitors are 12V battery controllers for managing batteries from 5 to 600 A. The large display shows voltage, instantaneous consumption, remaining amperes, charging and discharging time, and battery wear. For both service and starter batteries. Supplied with 100A shunt, 5m cable and protective cover. Features common to both BM-1 and BM-1 COMPACT.

Available in 2 colors: Gray / White

Available in 12V or 24V versions.

• Ref : NAS-NBM1CG/12 12 Volts - Shunt 100 Amp - Grey
• Ref : NAS-NBM1CW/12 12 Volts - Shunt 100 Amp - White
• Ref: NAS-NBM1CG/24 24 Volts - Shunt 100 Amp - Grey
• Ref: NAS-NBM1CW/24 24 Volts - Shunt 100 Amp - White

Dimensions (mm): 125 x 62 x 23

Specifications

- Power supply 8 to 16 volts

- Consumption: 3ma

- Battery capacity 5 to 600 a/hour

- Charging current 100 a

- Shunt: standard 50 millivolt at 100 AMP

- For service and starter batteries
