Wireless wind vane and anemometer pack Clipper

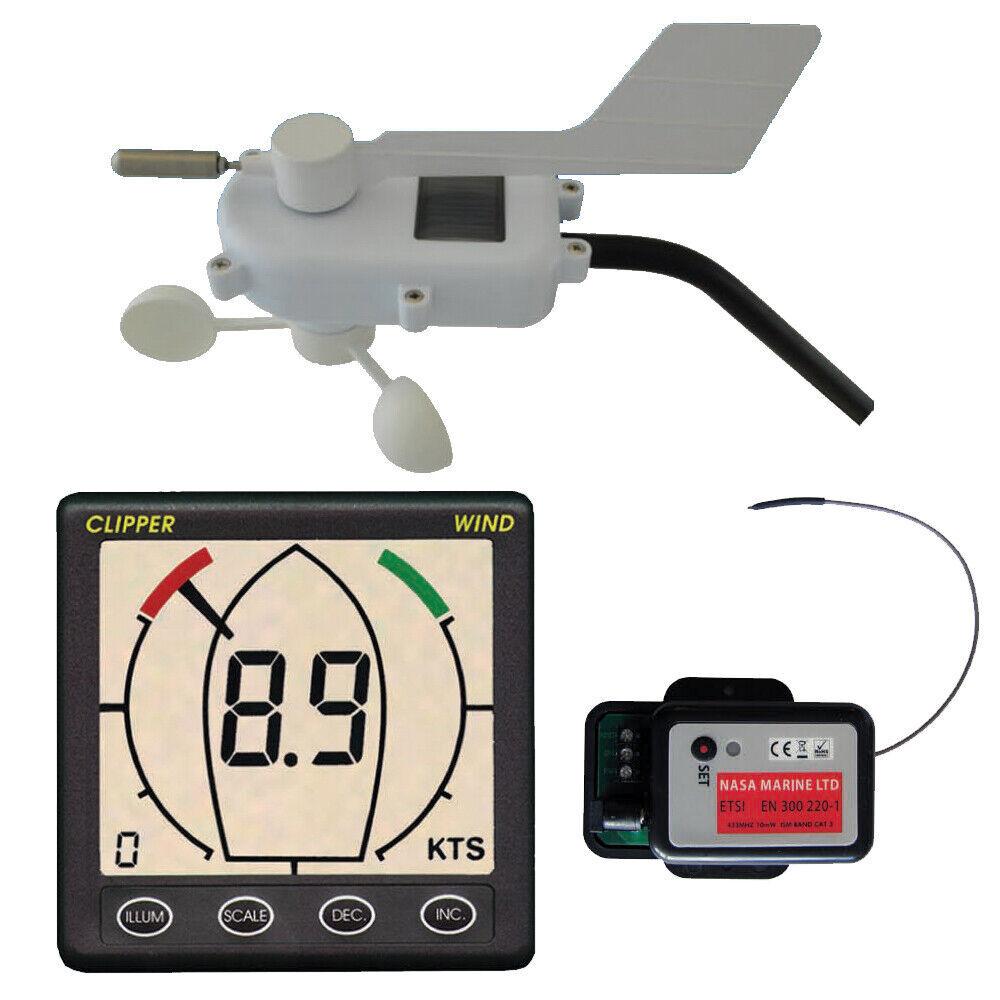

CLIPPER Wireless Anemometer Wind Vane

The wireless anemometer wind vane from Nasa is an instrument that displays wind direction and speed, and offers exceptional readability with 32 mm digits. This pack includes an anemometer wind vane with an aerial and an indicator.

Equipped with port NMEA 0183. Clipper can be connected to any other compatible equipment.

INDICATOR CLIPPER

The Nasa Marine indicator is connected directly to your wind vane to give you real-time information on wind speed and direction.

Its analog display ultra-luminous 110 x 110 mm allows clear reading and customization of the needle style.

WIRELESS WIND VANE ANEMOMETER

This wireless anemometer wind vane provides apparent wind indications: wind direction over 360°. speed (knots. miles or mph) and speed trend (acceleration/deceleration).

Equipped with NMEA 0183 protocol, the wind vane can be linked to your navigation software.

Easy installation with no cables on the mast!

WINDVANE REPEATER CLIPPER

Connect an optional second display to your main unit. This allows you to display the information from the wind vane anywhere on your boat. It is directly connected to the main display.

Ideal for repeating on another helm station or chart table!

Please note: this repeater can NOT be used as a main display, and must NOT be connected directly to the wind vane.

Specifications

- TECHNICAL SPECIFICATIONS

• Standby time > 15000 hours
• Operating time > 2000 hours
• Charging time <150 hours daylight

- WIND VANE SPECIFICATIONS

• Wireless masthead transmitter
• NMEA 0183 4800 bauds
• NMEA MWV data sentence

- INTERFACE UNIT

• Nominal supply voltage 12v DC
• Supply current 17mA
• Wind speed and direction: NMEA MWV data sentence to any NMEA device compatible
• Wind speed and direction data
• Easy wireless installation
